Description

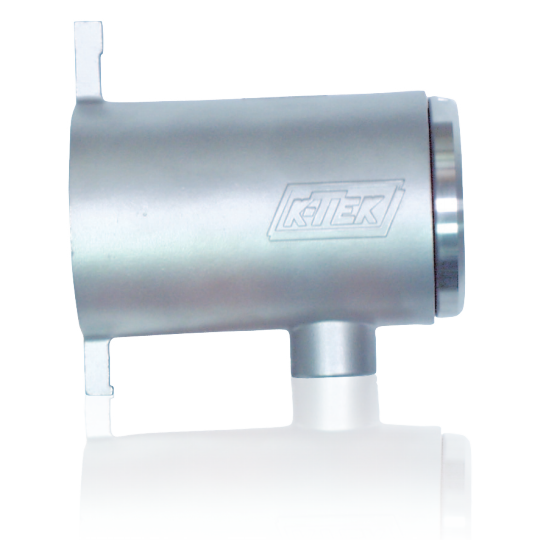

The K-TEK MS41 electric switch is a magnetically actuated double pole double throw switch. When the MS41 is mounted on a KM26, LS Series, or an External Chamber that contains a K-TEK magnetic float, it can sense a high or low level within a vessel. The unique magnetic coupling action eliminates the need for seals, diaphragm springs, or torque tubes because there is no physical contact with the process. The switch configuration also has no process connections which insures complete isolation from the process. The maintenance free design requires no periodic cleaning or operational checks and contains hermetically sealed contacts that insure high reliability and extended product life. Data content goes here. Delete this tab if not needed. Example:
Hermetically Sealed DPDT Switch
NEMA 4X Sealed 316L Stainless Steel Enclosure
Separate Terminal Compartment Eliminates Corrosion Potential
Easy Mounting and Adjustment – Only Screwdriver Required
Trip Point Infinitely Adjustable Without Changing Process Piping
Vibration Resistant
Compact Design
Process Temperatures from –320 to 850°F / -195 to 454°C
