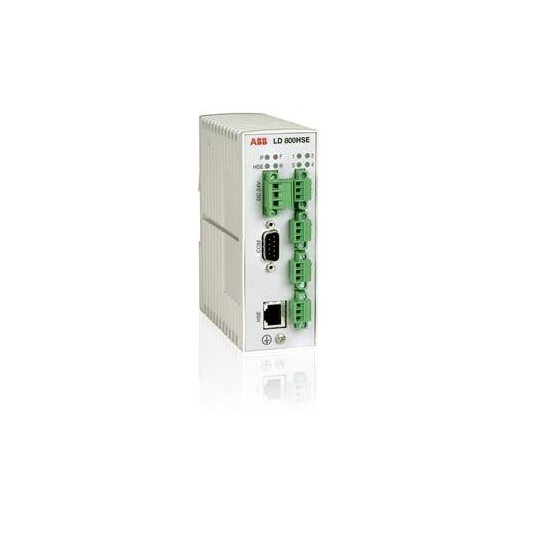

FOUNDATION Fieldbus Linking Device LD 800HSE

Compare
Categories: , Tag:
Availability

Unavailable

Description

LD 800HSE enables the access to field devices connected to the FOUNDATION Fieldbus (FF) from supervisory and control systems as well as management consoles. The device is qualified for redundant use, where the corresponding H1-ports of two Linking Devices are connected to one H1 link. A separate redundancy link between primary and secondary Linking Devices ensures reliable failover and monitoring of redundancy.

Two different versions are available, one for safe areas and one for hazardous areas. Provides link between the FF’s High Speed Ethernet (HSE) protocol and up to four H1 links
Transparent configuration of connected H1 devices from host system
Allows access to blocks in H1 devices (Client/Server)
Four Independent H1 Link Masters (LAS)
Publish/Subscribe (H1) (with up to 4 sub-cycles)
Republishing of data from one H1 link into another or from H1 to HSE
Firmware update via downloadhttps://webimages.imagebank.abb.com/public/default/product/9AAC207546/preview
