Description

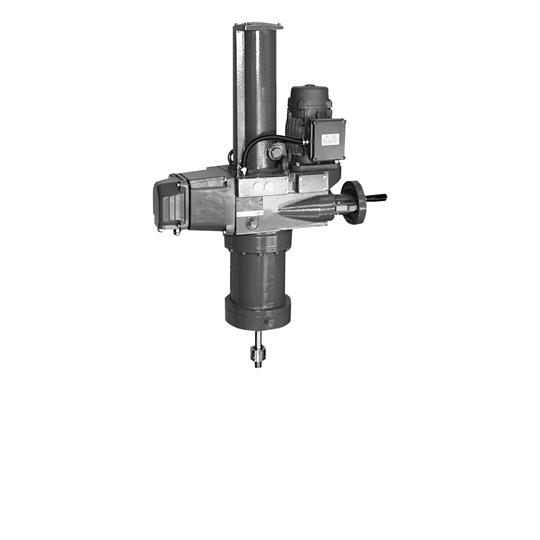

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 10 kN (2250 lbf). The actuator thrust rod transfers the force directly to the final control element. General specifications:
Electrical actuator for continuous positioning or step control
Stallproof without the need of position or torque dependent switch-off
Three-phase asynchronous motor
Sturdy gear unit with highly efficient design
Internal rotary – linear conversion
Hand wheel for emergency operation
Integrated sensors for position and temperature
Signal and power input only via separate, microprocessor-controlled electronic unit
Find out more about the electronic units:
Field installation
– Medium power range EBN853
Mounting rack installation
– Medium power range EBS852. Rated speed
RSD10-5,0
– 0.1 to 5.0 mm/s
RSD10-10,0
– 0.1 to 10.0 mm/s
Stroke range
– min 0 to 15 mm, max. 0 to 300 mm
