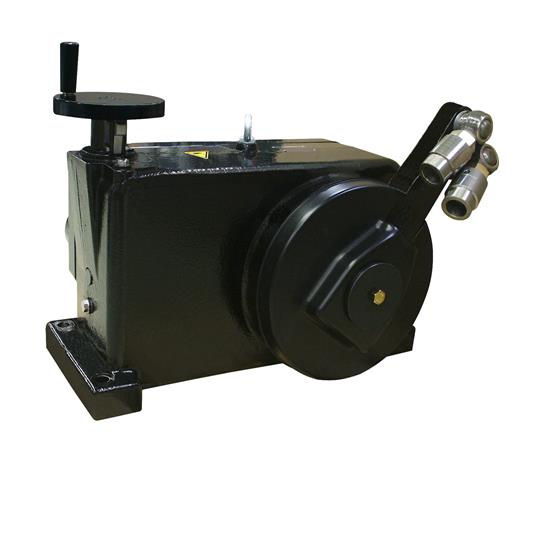

Electrical ​rotary actuator RHD1250 (Contrac)

Compare
Categories: , Tag:
Availability

Available

Description

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 1250 (1000 lbf-ft). The actuator thrust rod transfers the force directly to the final control element. General specifications:
With integrated electronic unit or for use with separate electronic unit
Process optimization thanks to maximum control precision
Maintenance-free up to 10 years
Electrical actuator for continuous positioning, three-point position control, or bus control
Stallproof without the need for position- or torque-dependent shut-off
Adjustable mechanical limit stops for defined operating range
Handwheel for emergency operation
Find out more about the electronic units:
– Medium power range EBN853
– High power range EBN861
Mounting rack installation
– Medium power range EBS852
– High power range EBS862
Rated speed
RHD1250-12,0
– 12 to 900 s/90°
Operating angle
– min. 35° / max. 300°
