Description

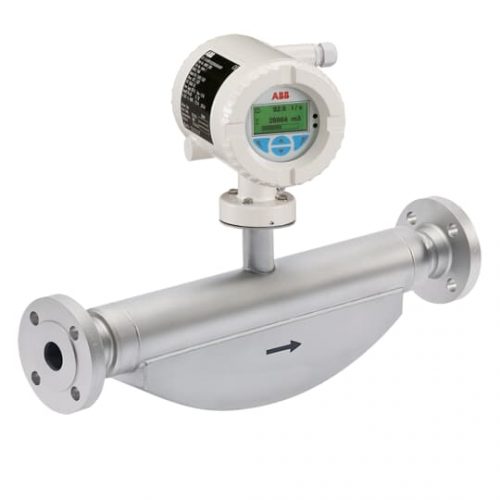

| FCB430 – CoriolisMaster FCB430 Coriolis Mass Flowmeter | ||
| Explosion Protection Certification | Y0 | General Purpose |
| Connection Design / Connection Box Material / Cable Glands | Y0 | Integral, defined by Transmitter housing |
| Meter Size / Connection Size | 015R0 | DN 15 (1/2 in.) / DN 15 (1/2 in.) |
| Process Connection Type | D4 | Flanges DIN PN 40 |
| Material of Wetted Parts | A1 | Stainless steel |
| Flow Calibration | A | Flow forward +/- 0.40 % of flow rate, Gas 1 % of flow rate |
| Density Calibration | 1 | Density 10 g/l |
| Connection Design / Transmitter Housing Type / Transmitter Housing Material / Cable Glands | S1 | Integral / Single compartment / Aluminium / 3 x M20 x 1.5 |
| Outputs | G0 | Current output 1 (active or passive), digitial output 1 & 2 (passive), HART |
| Power Supply | C | 11 … 30 V DC |
| Integrated Digital Display (LCD) | L2 | With Push Buttons and Display (TTG) and Glass Cover |
