Description
With ABB’s EZLink automatic sensor connection technology.

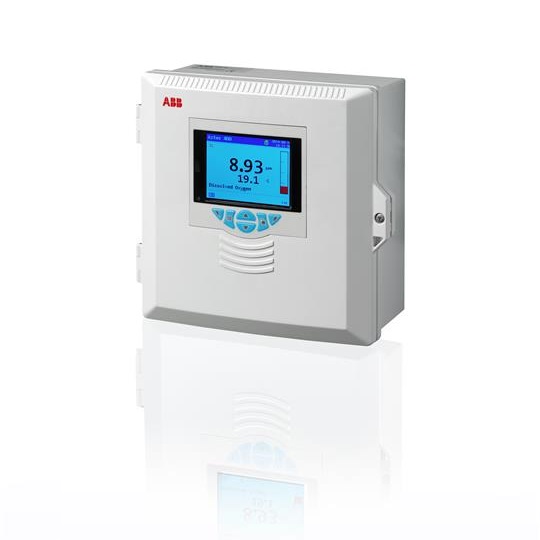

The AWT440 transmitter is designed to be used with minimum expertise or maintenance. Enabling users the ultimate flexibility to expand the transmitter functionality and capacity to meet operational demands. Users of the AWT440 benefit from plug-and-play connectivity, automatic sensor recognition and set-up.
Enabling:
– Automatic connection of up to 4 digital sensor
– Intuitive software with full colour graphical display
– Data logging and graphical process trending
– Full audit trail capability
– Secure data archiving to SD Card or USB Stick
– Ethernet, Profibus or MODBUS communications Operation
– Language
English, German, French, Italian, Spanish
– No. of inputs
Up to 4 sensors
Mechanical data
– Protection
IP66 / NEMA 4X
– Dimensions
194 mm (7.64 in.) x 214 mm (8.42 in.) x 98 mm (3.85 in.)
Weight – 1.5 kg (3.3 lb)
Materials of construction
Glass-filled polycarbonate
Electrical
– Power supply ranges
– 100 to 240 V AC ±10 %, 50 / 60 Hz
– Power consumption
<30W
– Analog outputs
2 standard + 2 optional
– Relay outputs
4 standard + 2 optional
Digital inputs / outputs
– 6 standard, user-programmable as input or output
Connectivity / Communications (optional)
– Ethernet
– Profibus (DPV1)
– MODBUS (RTU RS485)
